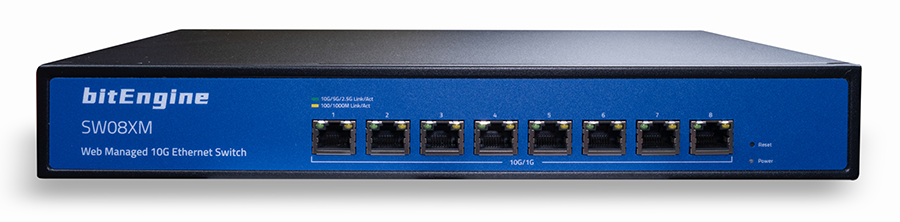

8-Port 10GbE Web Smart Switch

Managed Layer 2 Switch

Blue Background

Product Highlights

8 port 10G Web Managed Ethernet Switch Adopting high-quality and high-speed network chip solutions, with all 10G RJ45 ports and smoother line speed forwarding, equipped with 8* 10G RJ45 ports, supporting speeds of 1.25G/2.5G/10G,By adopting a storage and forwarding mechanism and integrating high-capacity cache internally, it ensures that all ports can achieve 10 Gigabit non blocking line speed forwarding, adapting to more unexpected situations. Steel shell design, efficient and stable heat dissipation, all steel shell structure, sturdy and durable, high strength, efficient heat dissipation, ensuring stable product operation. This switch can be widely used in areas such as security network video surveillance, hotels, campuses, and network engineering for medium and large enterprises.

  • Support 8* 10G RJ45 Port

  • Supports IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3ab，IEEE802.3z

  • Ethernet ports support 1.25G/2.5G/10G self- adaptive

  • Support port Auto MDI/MDIX

  • Adopting a storage and forwarding exchange mechanism

  • All ports support line speed switching

  • Panel indicator lights monitor working status and help failure analysis

  • Support QoS data priority;

Technical Specifications

I/O Interface

  • Power: AC 100-240V / 50-60Hz

  • Ethernet: 8*10G RJ45 Port

Performance

  • Bandwidth: 160Gbps

  • Packet forwarding rate: 119.04Mpps

  • Package cache: 12Mbit

  • VLAN: Range 1-4094

  • MAC Address Table: 16K

  • Forwarding mode: Store forward

Network protocol

  • IEEE 802.3: Ethernet Media Access Control (MAC)

  • IEEE 802.3i: 10BASE-T Ethernet

  • IEEE 802.3u: 100BASE-TX Fast Ethernet

  • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet

  • IEEE 802.3z: 1000BASE-X Gigabit Ethernet

  • IEEE 802.3x: Flow Control

  • IEEE 802.3az (Efficient and Energy saving Ethernet)

  • IEEE 802.3ae (10 Gigabit Ethernet)

  • IEEE802.3 bz (2.5G/5G Ethernet standard)

Industry standard

  • EMS: EN61000-4-2 (ESD)

  • EN61000-4-5 (Surge)

Network Medium

  • 10Base-T: Cat3, 4, 5 or above UTP/STP (≤ 100m)

  • 100Base TX: Cat5 or above UTP/STP (≤ 100m)

  • 1000Base TX: Cat5 or above UTP/STP (≤ 100m)

  • 2.5GBase TX: Cat6 class or UTP/STP (≤  100m)

  • 10GBase TX: Cat7 or above UTP/STP (≤  100m)

Working environment

  • Operating temperature: 0~40°C

  • Storage temperature: -40~70°C

  • Operating humidity: 10%~90%, non-condensing

  • Storage humidity: 5%~95%, non-condensing

Functional indication

  • Indicator: PWR(Power Indicator), SYS(System Indicator)

  • PWR

    • On: Powered on​

    • Off: Powered off

  • SYS

    • On: System normal​

    • Flashing: System startup

  • 2.5G/5G/10G(Green Light)

    • On: Link connect normal​

    • Flashing: Data transmitting

    • Off: Link off

  • 100/1000M(Yellow Light)

    • On: Link connect normal​

    • Flashing: Data transmitting

    • Off: Link off

  • Reset: Long press for 6 seconds to restore factory settings

Physical Specification

  • Structure Size

    • Product Size: 320*207*45mm​

    • Package Size: 370*290*85mm

    • Product Net-Weight: 1.82KG

    • Product Gross-Weight: 2.36KG

  • Packing Info

    • Carton Size:  445*310*390mm​

    • Packing Qty: 5 PCS

    • Packing Weight: 12.8KG

  • Power Adapter

    • Input voltage: AC 100-240V 50/60Hz​

    • Power supply: 12V 8A

  • Power Consumption: Full load power of the whole machine: 38.6W

  • Packing List: Switch 1PCS; Adaptor 1PCS; User Manual 1PCS, Certificate 1PCS

Software Functions

  • Port

    • Port Switch Configuration​

    • Port Description Configuration

    • Port Speed Configuration

    • Port Duplex Configuration

    • Port Flow Control Configuration

    • Jumbo

    • EEE

  • Link Aggregation

    • Support load sharing strategy based on MAC and IP-MAC addresses​

    • Static and dynamic aggregation groups

    • Support LACP

    • Max. 8 members per group

  • Storm Control

    • Boardcast​

    • Unknown Multicast

    • Unknown Unicast

  • Port Mirroring

    • One to one monitor​

    • Many to one monitor

    • Ingress/Egress/Both

    • Up to 4 session groups

  • Port Security

    • MAC Address Constraints​

    • Protect/Restrict/Shutdown

  • Port Isolation

  • Port Rate-limit

  • VLAN

    • Access/Trunk/Hybrid​

    • VLAN Tunnel （Q-in-Q Tunnel）

    • VLAN range 1-4094, maximum active VLAN is 4K

  • MAC Address

    • Static MAC address​

    • MAC Address Filtering

  • Spanning Tree Protocol

    • STP/RSTP

    • BPDU Filter

    • BPDU Guard

    • Edge Port

  • Multicast

    • IGMP Snnoping​

    • IGMP V1/V2/V3

    • Router Port

    • Static Multicast

  • QoS

    • Traffic classification based, Strict priority and WRR​

    • Port Priority

    • 802.1P Priority

    • IP DSCP Priority

    • Supports up to 8 queues per port

    • Priority Remark

  • Access Protocol

    • HTTP​

    • Session timeout

  • Security

  • DHCP Snooping

  • Diagnostics

  • Ping

  • Electrical Port Test

  • Management

  • Manager Access

    • HTTP​

    • SNMP

  • Manager IP

    • Static​

    • DHCP Client

    • Manager VLAN

    • DNS

  • SNMP

    • V1/V2C​

    • Community Name

    • Trap host

  • SNMP MIB

    • RFC 1213 MIB-II​

    • RFC 1643 Ethernet MIB

  • User Management

  • Firmware Upgarding

  • Configuration: Save, upload and download

  • Restart

  • Factory Defaults

Standards Compliance

  • IEEE 802.3x flow control and back pressure

  • IEEE 802.3ad port trunk with LACP

  • IEEE 802.1D Spanning Tree Protocol

  • IEEE 802.1w Rapid Spanning Tree Protocol

  • IEEE 802.1p Class of Service

  • IEEE 802.1Q VLAN tagging

  • RFC 768 UDP

  • RFC 793 TFTP

  • RFC 791 IP

  • RFC 792 ICMP

  • RFC 2068 HTTP

  • RFC 1112 IGMP v1

  • RFC 2236 IGMP v2

  • RFC 3376 IGMP v3
