Product Highlights

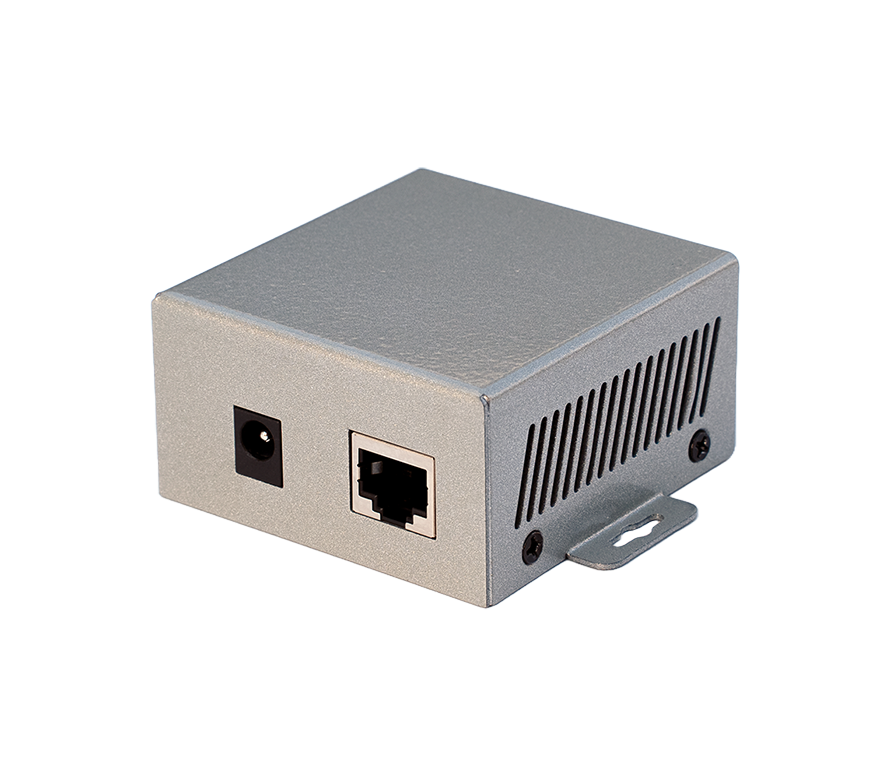

The IEEE 802.3af/at compliant PoE Injector integrates power and data over a single Ethernet cable, delivering up to 30W of power while supporting network speeds up to 10Gbps. Designed for flexibility and reliability, it is well-suited for enterprise and surveillance deployments.
-
10Gbps Data Throughput – Reliable, high-speed connectivity for bandwidth-intensive applications.
-
IEEE 802.3af/at Support – Provides up to 30W of power for a wide range of PoE and PoE+ devices.
-
Dual Power Input Options – Supports both 12V and 48V DC power sources for flexible deployment.
-
Plug-and-Play Design – Hassle-free installation with no additional configuration required.
-
Broad Compatibility – Works with PoE and non-PoE switches, routers, and network devices.
-
Versatile Applications – Ideal for IP cameras, wireless APs, VoIP phones, and enterprise networks.
Resources
Technical Specifications
Standards Compliance
-
IEEE 802.3af (PoE)
-
IEEE 802.3at (PoE+)
Data Rate
-
10/100/1000Mbps
-
2.5Gbps
-
5Gbps
-
10Gbps
Power Output:
-
PoE (802.3af): up to 15.4W
-
PoE+ (802.3at): up to 30W
Input Power
-
DC 12V / 48V supported
Ethernet Ports:
-
1 × Data In (RJ45)
-
1 × Data + Power Out (RJ45)
PoE Pin Assignment
-
1/2(+), 3/6(–)
Protection
-
Overload, short-circuit, surge protection
Operating Temperature
-
0°C to 50°C (32°F to 122°F)
Storage Temperature
-
–20°C to 70°C (–4°F to 158°F)
Humidity
-
10% to 90% non-condensing
Dimensions
-
50 × 50 × 35 mm
Weight
-
87g
Mechanical & Environmental
-
Enclosure Material: Metal housing with corrosion-resistant coating
-
Cooling Method: Passive cooling, fanless design for silent operation
-
Mounting Options: Desktop / wall-mount (brackets optional)
-
Color: Sliver (standard)
-
Ingress Protection: IP30 (indoor use)
-
MTBF: >100,000 hours (25°C, typical)
Certifications
-
FCC, CE
