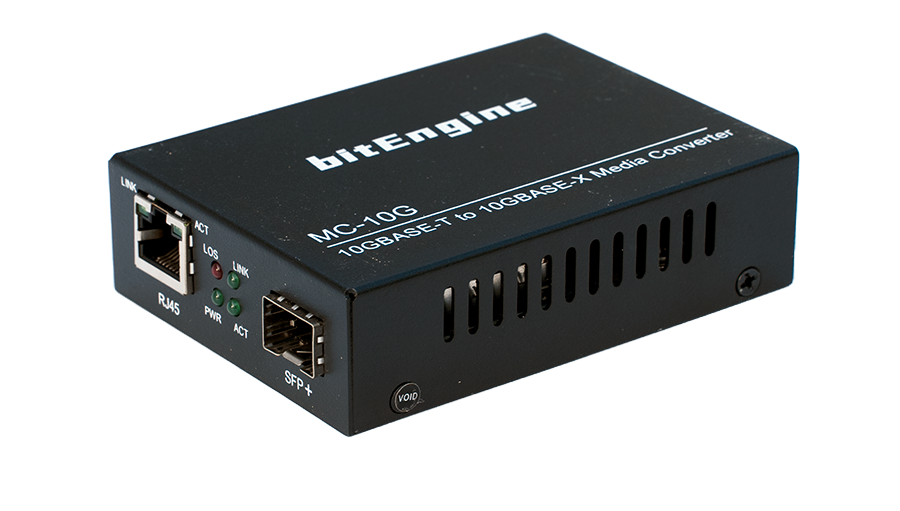

MC-10G

10G Base-T to 10G Base-X Media Converter

Blue Background

Product Highlights

Our 10G Media Converter is a high-performance solution that seamlessly bridges copper and fiber networks. Featuring a 10GBASE-T RJ-45 port with multi-gigabit auto-negotiation (1G/2.5G/5G/10G) and a versatile SFP+ slot, it supports a wide range of transceivers for single-mode or multi-mode fiber, covering both short- and long-distance deployments. Key highlights include plug-and-play installation, hot-swappable modules for easy maintenance, link fault detection for reliable uptime, and flexible deployment options such as desktop, rack, or chassis mounting. With strong standards compliance and enterprise-class stability, it delivers a cost-effective, scalable path to 10G network upgrades while protecting your existing infrastructure investment.

  • Multi-gigabit copper port with auto-negotiation (1G/2.5G/5G/10G)

  • Flexible SFP+ slot supporting a wide range of optical modules

  • Reliable long-distance transmission over single-mode or multi-mode fiber

  • Hot-swappable design for simplified upgrades and maintenance

  • Link Fault Detection ensures network reliability and uptime

  • Multiple installation options: desktop, rack, or chassis deployment

  • Standards-compliant for seamless integration with existing networks

Technical Specifications

Interface

  • Copper Port: 1 × RJ-45, 10GBASE-T, backward compatible with 1G/2.5G/5G

  • Fiber Port: 1 × SFP+ slot, supports 10GBASE-SR/LR/LRM and various transceivers

Standards Compliance

  • IEEE 802.3an (10GBASE-T)

  • IEEE 802.3ae (10GBASE-X)

  • IEEE 802.3ab (1000BASE-T), IEEE 802.3bz (2.5G/5G)

  • IEEE 802.3z (1000BASE-X)

Performance

  • Data Rate: Up to 10 Gbps full-duplex

  • Auto-Negotiation: 1G / 2.5G / 5G / 10G

  • Auto MDI/MDIX supported

  • Latency: < 1.2 μs

Transmission Distance

  • Copper: Up to 100 m (Cat6a/7 cable at 10G)

  • Fiber: Depends on SFP+ module (e.g. 300 m with SR, up to 10 km with LR, longer with CWDM/DWDM modules)

Features

  • Hot-swappable SFP+ transceiver support

  • Link Fault Detection / Link Pass-Through

  • Plug-and-Play operation, no software required

  • Status LEDs for power, link, and activity monitoring

Power

  • Input: 12V DC external adapter

  • Power Consumption: Typically < 4 W

Physical

  • Form Factor: Compact standalone unit

  • Dimensions: Approx. 95 × 70 × 25 mm

  • Weight: ~185 g

Environment

  • Operating Temperature: 0 °C to 50 °C

  • Storage Temperature: –20 °C to 70 °C

  • Humidity: 10% – 90% non-condensing

Certifications

  • CE, FCC, UKCA

Package Content

  • MC-10G

  • Power Adapter

  • User Guide
