XGS-PON ONT with 10GbE LAN

Wide temperature range, w/o PoE PD

Blue Background

Product Highlights

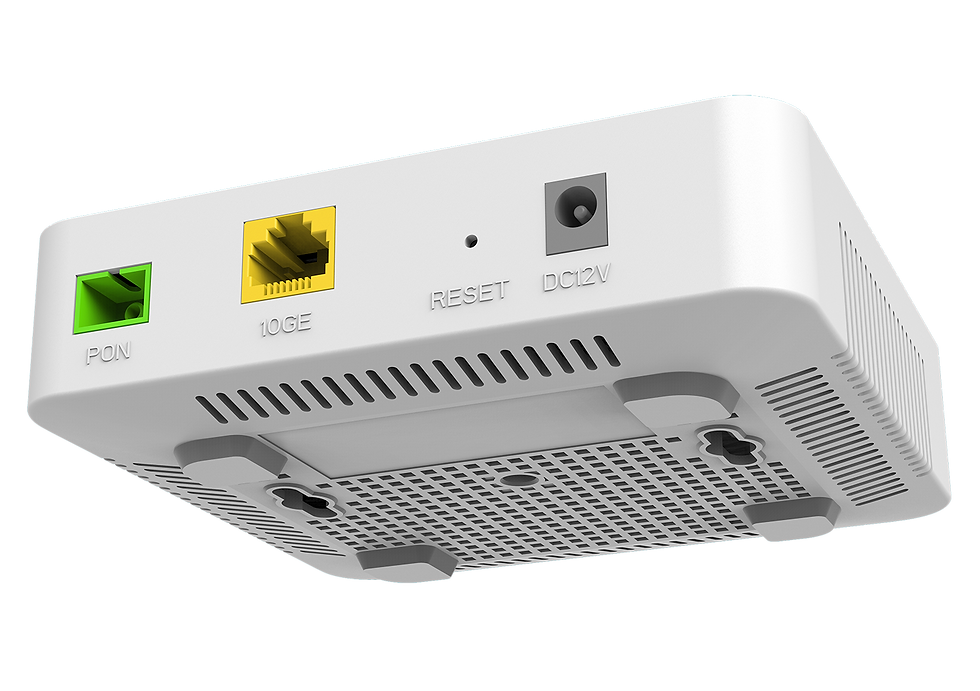

The 10G ONU XGS-10G-O developed by bitEngine supports XGS-PON, providing multiple rate Ethernet ports of 10GbE. The XGS-10G-O can easily meet business needs such as 4K/8K and VR, and can provide home and enterprise users with the ultimate experience of 10G ultra high-speed Internet connection. it can be placed on a desktop or wall-mounted, adapting effortlessly to various scene styles!

Additionally, this ONU supports a wider temperature range, from -20°C to 65°C. This expands the possibilities for its installation and use. Furthermore, in addition to power adapter supply, it supports 802.11af PoE. This provides an alternative power option in areas where traditional power is inconvenient.

  • XGS-PON High Performance Chipset

  • 1x 10GbE High Speed LAN Port

  • IPv4/IPv6 Dual Stack

  • Powered by 802.3af PoE or DC Power Adapter

  • With excellent interoperability, it supports major OLT brands.

Technical Specifications

Dimension

  • 125mm*120mm*30mm (L*W*H)

Net weight

  • 246g

Operating condition

  • Operating temp: -20 ~ +65°C

  • Operating humidity: 5 ~ 95% (non-condensed)

Storing condition

  • Storing temp: -40 ~ +70°C

  • Storing humidity: 5 ~ 95% (non-condensed)

Power supply

  • 12V DC in

  • 802.3af PoE

Power adapter

  • 12V/2A

Power Consumption

  • <12W

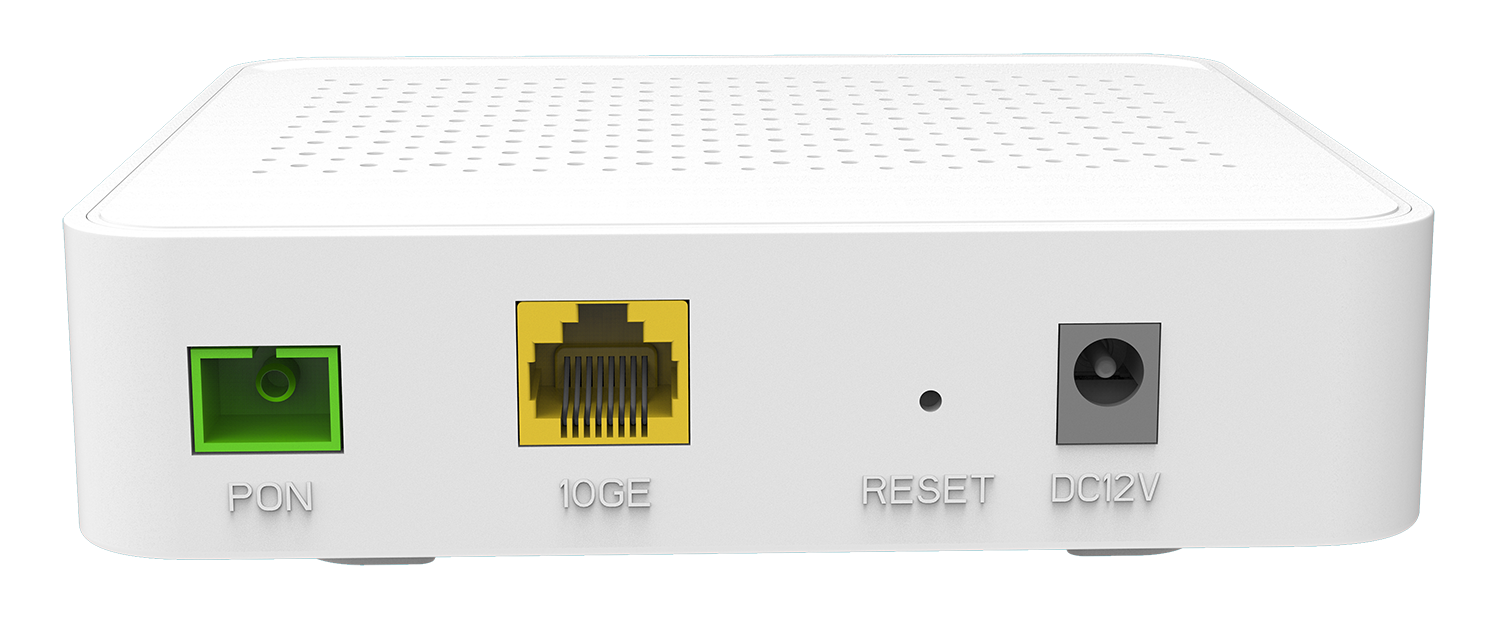

Interface

  • 1*10GbE

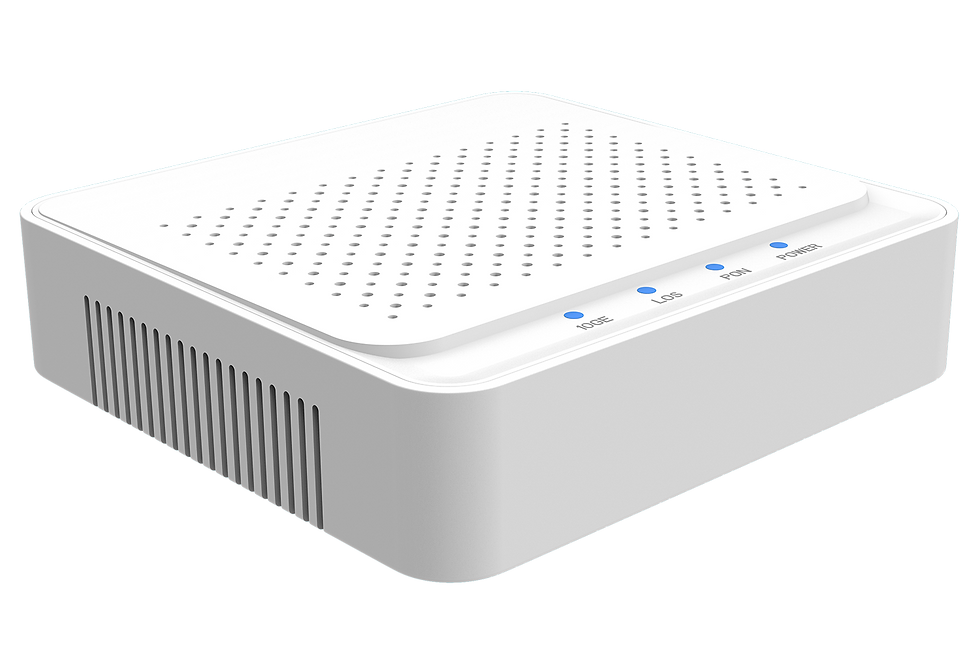

Indicators

  • SYS, PON, LOS, LAN

PON Interface

  • SC single mode, SC/UPC connector

  • TX optical power: 6dBm

  • RX sensitivity: -28dBm

  • Overload optical power: -8dBm

  • Transmission distance: 20km

  • Wavelength: XGS-PON:DS 1577nm/US 1270nm

10G PON layer

  • ITU-T G.9807.1 (XGS-PON)

Internet connection

  • Support Bridge mode

Alarm

  • Support Dying Gasp

  • Support Port Loop Detect

LAN

  • Support Port rate limiting

  • Support Loop detection

  • Support Flow control

  • Support Storm control

VLAN

  • Support VLAN tag mode

  • Support VLAN transparent mode

  • Support VLAN trunk mode

  • Support VLAN hybrid mode

Multicast

  • IGMPv1/v2/Snooping

  • Support multicast protocol VLAN and multicast data stripping

  • Support multicast translation function

QoS

  • Support WRR、SP+WRR

O&M

  • WEB/TELNET/SSH/OMCI

  • Support private OMCI protocol and Unified network management of 3rd party OLT

Other

  • Support log function

Certifications

  • FCC, CE
